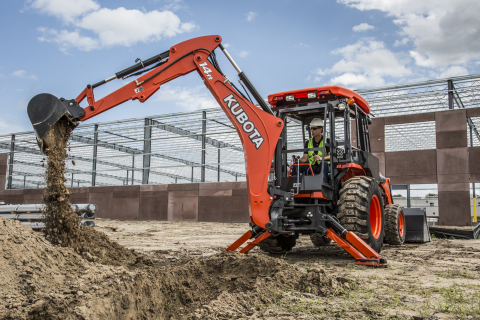

LAS VEGAS — Kubota Tractor Corp. announces two new models in the tractor-loader-backhoe (TLB) segment, the L47 and M62 TLBs. Both were introduced at the World of Concrete trade show in Las Vegas. The new TLBs replace the L39, L45 and M59 in the Kubota product line. Both units will join Kubota’s popular B26 to round out its TLB line, and will be available at Kubota dealerships nationwide in February. Kubota M62 Backoe

“Kubota is taking its tractor-loader-backhoe line to new levels of performance and refinement,” said Tim Boulds, Kubota construction equipment product operations manager. “Our newest generation of TLBs is more powerful, more efficient, and offers more features for comfort and convenience. The two new models feature optional single-lever hydraulic hookup for coupling and uncoupling of front implements, making Kubota’s TLBs an attractive three-in-one option to buyers in the rental, construction and landscaping sectors.”

Three-in-One Machine with Easy Single-Lever Attachments

Kubota’s new TLBs feature true workhorse capabilities with essentially three machines in one, capable of performing front loader, backhoe and tractor work, and supported by an integrated main frame for increased durability. Both the L47 and the M62 can perform front loading, rear excavating, and other implement tasks, such as a pallet fork or a box blade, via either a mechanical two-lever quick coupler or an optional hydraulic quick coupler. With the hydraulic coupler, the operator needs only to press two dashboard buttons to release the levers securing the front implement. After backing away and proceeding to the next attachment, pressing the buttons again re-engages the levers and secures the new implement. Because the operator does not need to exit the machine, the easy attachment feature proves value when working in inclement weather.

Additionally, the backhoe’s quick coupler allows for easy switching of Kubota excavator buckets, and a four-point rear quick-mount system allows for easy detachment of the backhoe when it’s not needed. Even more work duties can be handled with the aid of an independent PTO that enables the TLBs to get even more work done by attaching a wide range of PTO-driven implements, including rotary tillers, snow blowers and rear-mounted mowers — and because the PTO is hydraulic-independent, operators can engage and disengage without stopping the tractor.

Reaching New Digging Depths

Along with a front loader and powerful tractor, the M62 TLBs features highly efficient backhoes that dig deeper and reach farther than previous models. What’s more, the new models now feature the ability to use certain Kubota mini excavator buckets, which can provide for more versatility on the jobsite. Kubota’s L47 has a 10-foot digging depth and a bucket digging force of 5,825 pounds. The M62 offers contractors even greater excavating ability than its predecessors, with a 14-foot digging depth, a 17% improvement over the previous generation’s 12-foot max depth. The M62 has a bucket digging force of 6,572 pounds. On both TLB models, a lever-engaged backhoe crawling mode allows the operator to slowly creep forward or backward while remaining at the backhoe controls, saving time and enabling more sure-footed operation such as when working alongside a trench.

New Diesel Engines

The L47 and M62 are powered by turbocharged four-cylinder diesel engines that use a Common-Rail direct injection system, which, along with Exhaust Gas Recirculation (EGR) and Diesel Particulate Filters (DPF), enable compliance with Tier 4 Final emissions regulations. In addition, both engines are more powerful than their predecessors; the L47’s engine produces a rated 47.1* gross horsepower, while the M62 produces a rated 63* gross horsepower. The L47 and M62 are equipped with a much larger 17.7-gallon fuel tank — that’s providing up to 48% more fuel capacity than those of the previous TLBs, allowing both new models to work longer, with less downtime required to refuel.

Increased Comfort and Convenience Features

The L47 and M62 host a number of interior upgrades that are aimed at increasing functionality and optimizing operator comfort. In both models the clutch pedal has been eliminated, thereby allowing the brake pedal to be relocated to the left side of the cab, reducing interior clutter and simplifying driver operation. Foot space on the backhoe platform has been increased 27% over the previous models, providing the operator with a roomier work area. A new throttle-up switch increases engine rpm while holding vehicle speed steady for those times when extra power is required for front loader work but vehicle speed needs to remain constant, and the electronic throttle lever and PTO switch require less physical effort to engage than older mechanical controls.

*Horsepower was determined using SAEJ1995.
